"Dusty" - Table Saw Dust Collector (95% Dust Reduction)
Features and Benefits:
· Specifically designed for the DeWalt 745 (DW 745) table saw. Design is well documented and available for easy replication on an alternative DeWalt or other manufacturers compact or benchtype table saw.
· Combines with table saw exhaust dust collection to reduce dust by 95%

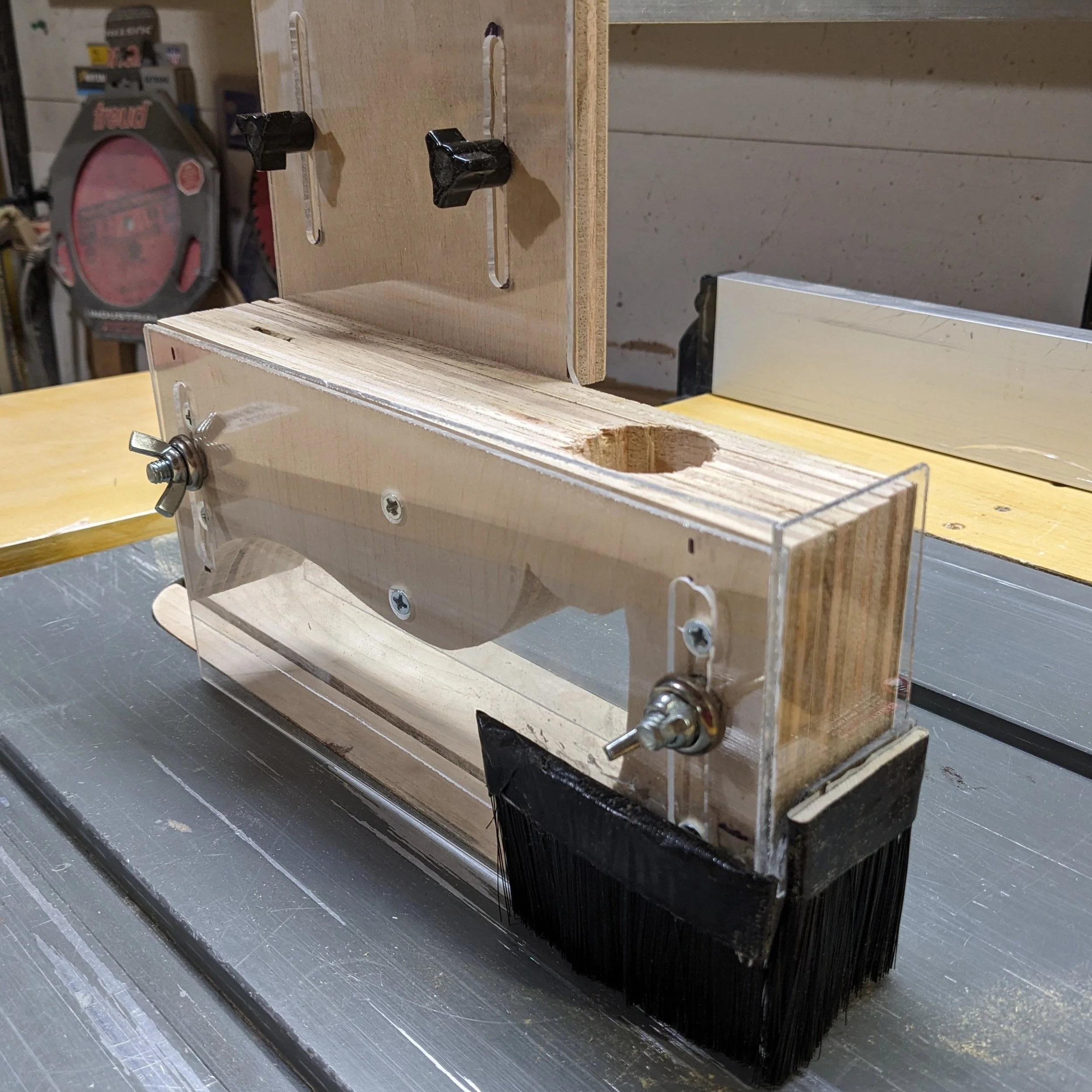

· Dust skirt (identical to those used on woodworking CNC) is provided to further reduce dust.
· Overarm mechanism pivots out of the way for use with sleds and very narrow rip cuts.
· Locking mechanism on arm prevents and permits rotation with a pin lock.
· Clever dropdown mechanism collects sawdust when rip cutting board edges (not found on SawStop dust collectors or other ‘near-the-blade’ collectors).
· Design expands table saw top surface area to facilitate easier cutting of larger sheet goods.
· It is noted that the newer SawStop compact saws have incorporated features found in my design (specifically installing under table flexible enclosures to prevent dust from escaping collection).
· Plans provide complete documentation (via text, pictures, graphics, videos and SketchUp files).
71.7 Minutes of instructional videos on how to build, use, test and maintain
9 pages of documentation of required materials and assembly instructions and graphics
10 SketchUp files for several component pieces
